Dimensions: 580 x 300 x 150 cm
Number of people: 2
Number of jets: 28

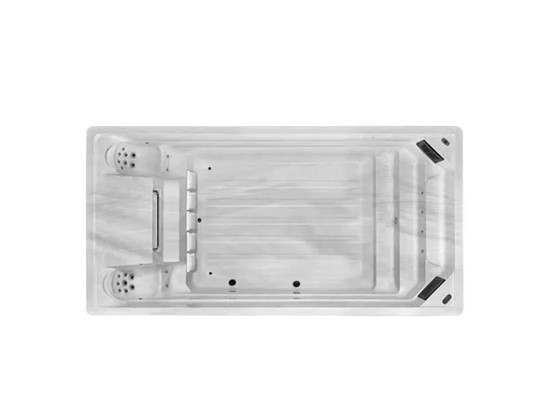

Introducing the new Turbine 6 Swim Spa, designed for the ultimate water experience. Measuring 5800 x 3000 x 1500 mm, this spacious spa offers the perfect combination of relaxation and fitness. Equipped with the advanced Balboa system (BP6013G1+TP400), it features an impressive swim training system with a powerful 2.8 kW motor, ensuring a smooth and challenging swim against strong currents. It can be operated with 2 32 amp power supplies.

The new Turbine 6 includes two high-performance filters, a 1.5 kW water pump and a 0.75 kW filter pump, guaranteeing crystal clear water at all times. With 28 strategically placed jets, three soothing LEDs and an innovative ozone and UV light system, your spa experience will be unparalleled. Safety is a priority with a guardrail and an automatic cover for peace of mind. With a total power of 10.85 kW, this pool spa is the perfect addition to any home, offering endless hours of enjoyment and relaxation.

An electric cover is optional.

Product Specifications

Dimensions: 5800 x 3000 x 1500 mm

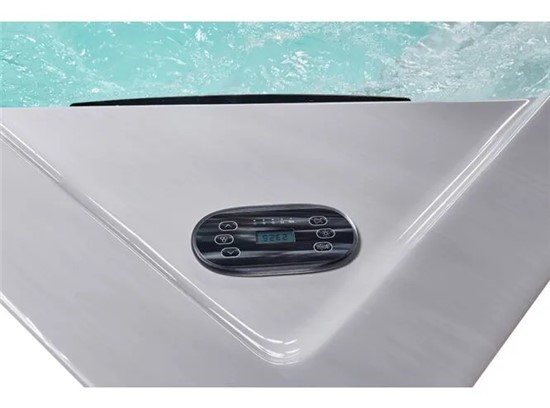

Balboa System
(BP601 3G1 + TP400)

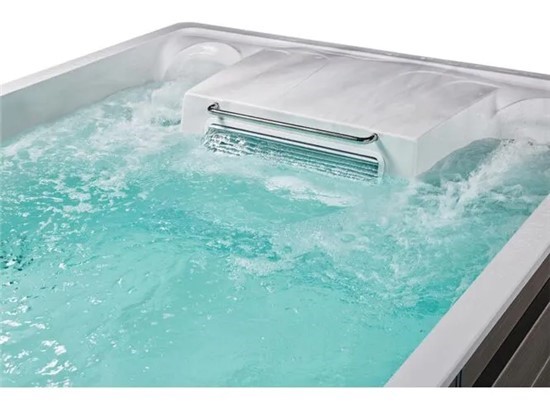

Swim Training System: 2.8 kW
Filters: x2
Water Pump: x1 (1.5 kW)
Filter Pump: x1 (0.75 kW)
LED Lighting: x3

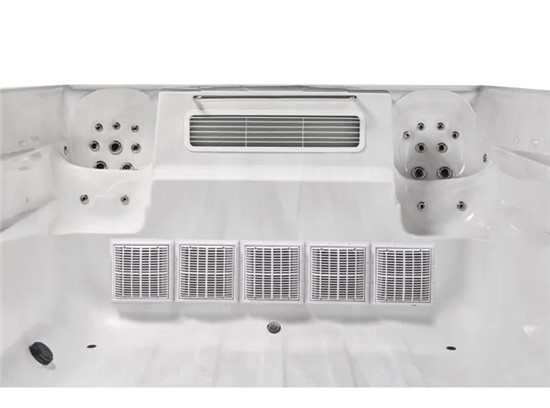

Jets: x28
Ozone: x1
UV Light: x1
Handle: x1

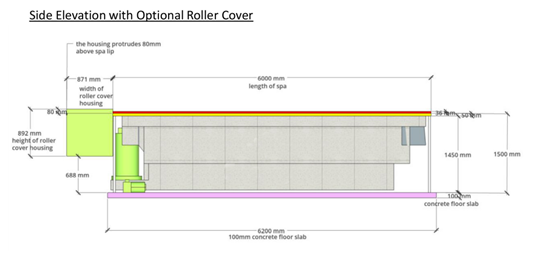

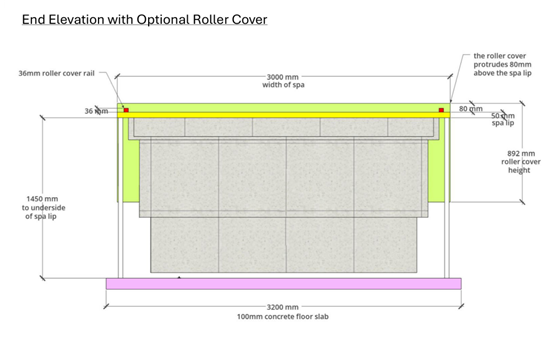

Electrical Roller Shutter: (Optional)
Circuit Breakers: x2 x 32 Amp
Double 13 Amp Outlet: (Optional)
Sand Filter System: Yes

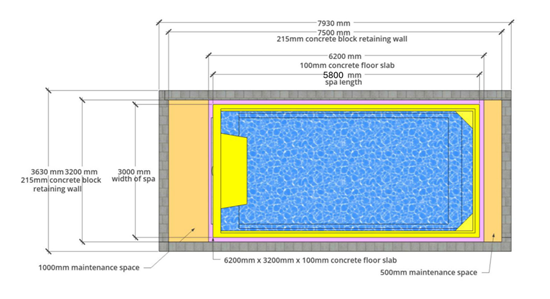

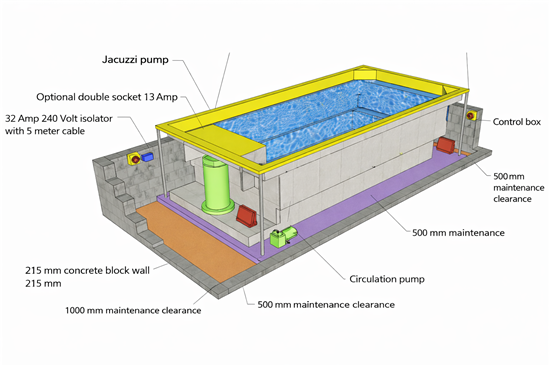

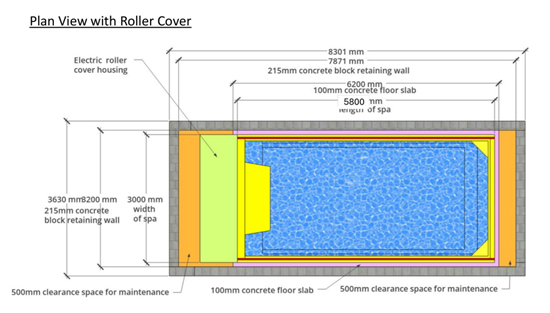

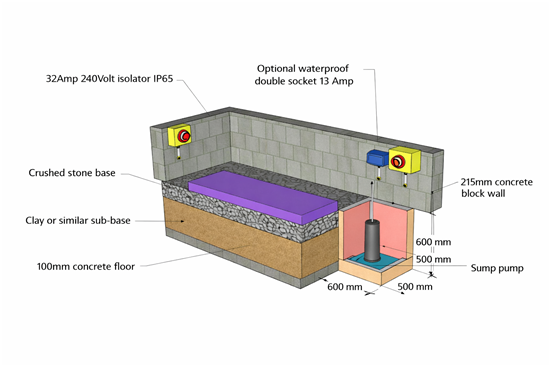

Installation Requirements

• Access required on both sides: minimum 1000 mm & 500 mm for maintenance
• Plate made of concrete 100 mm
• Cement brick retaining wall 215 mm

Filtration Specifications

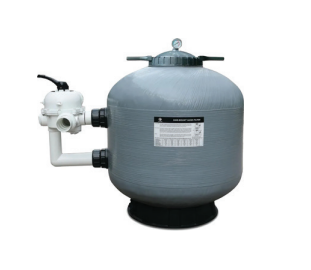

Sand Filter

Filter surface: 0.22 m²
Designed flow rate: 14 m³ / hour
Media quantity: 115 kg silica sand @ 0.5–0.8 mm
Maximum temperature: 43°C (based on 8 hours/day use)
Maximum operating pressure: 2.5 Bar

Skimmer Filters

Type: Passion Cylinder Filters
Diameter: 20 – 200 mm
Length: 100 – 500 mm

Ultraviolet (UV) Filter

Voltage: 12 Volt DC
Power: 16 Watt

Ozone

Replace unit every 36 months

Maintenance Schedule

Sand Filter: Backwash monthly. Grease removal every six months.
Skimmer Filters: Clean monthly. Replace every 12 months.
UV Lamps: Replace every 36–60 months.
