Dimensions: 697 x 298 x 147 cm
Number of people: 2
Number of jets: 62

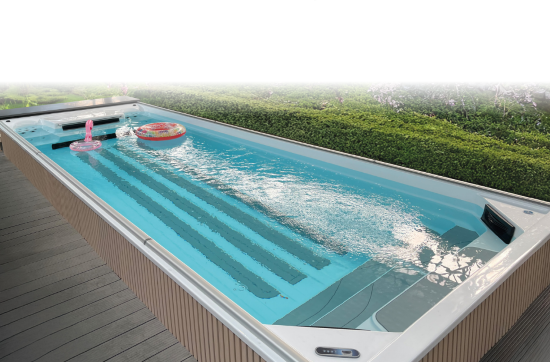

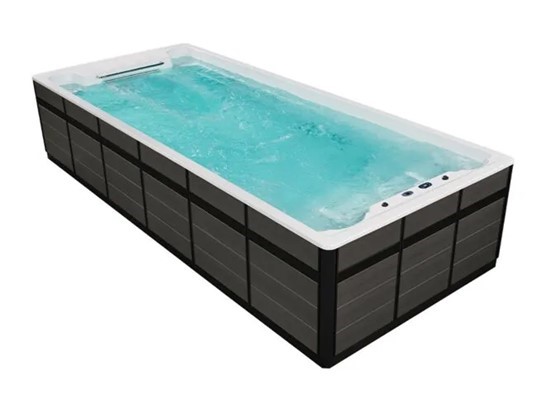

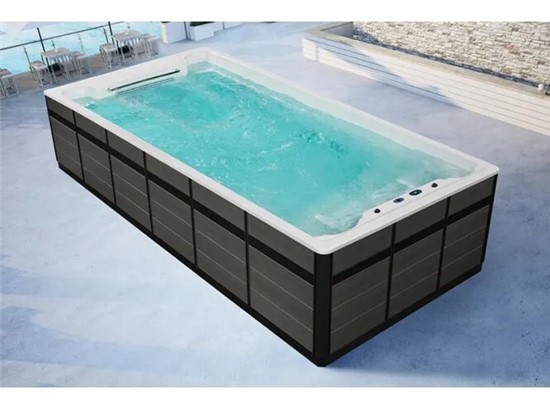

Experience the ultimate relaxation and fitness with the Turbine 7 Grand swim spa.

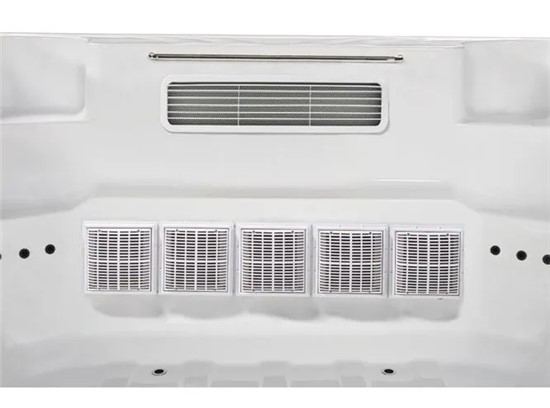

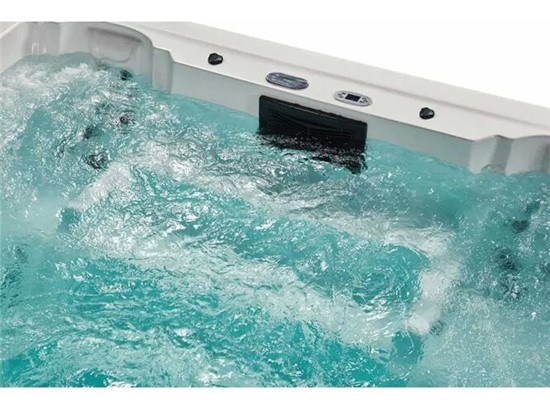

Discover the perfect combination of luxury, fitness and relaxation with this high-quality swim spa. Equipped with the advanced Balboa system (BP6013G1+TP400), this swim spa with counter-flow system combines a powerful swimming zone with an intensive training system powered by a powerful 2.8 kW motor. Thanks to the 2.2 kW water pump and 0.75 kW filter pump, you will always enjoy crystal clear water and optimal circulation. This garden swim spa can be operated with two 32 amp electrical connections.

Absolute comfort with 62 massage jets and innovative water treatment

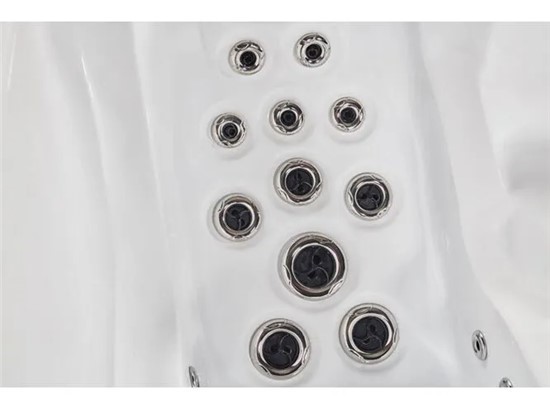

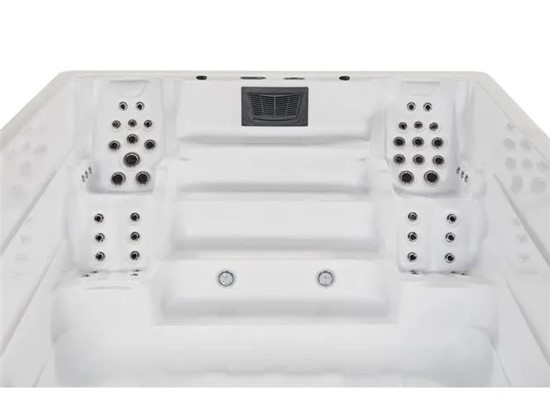

62 powerful hydromassage jets for a relaxing massage

2 air regulators for individual adjustment of the massage pressure

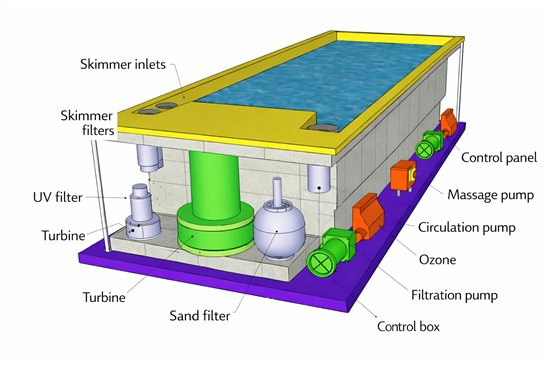

High-quality filtration system with square filter, sand filter cylinder and modern ozone and UV disinfection for optimal water quality

5-inch LED lighting for atmospheric atmosphere

Automatic cover (optional) for extra comfort

With a total power of 8.75 kW, this turbine swim spa offers endless possibilities for relaxation and effective training right in your backyard.

Technical Specifications

Dimensions: 6970 x 2985 x 1470 mm

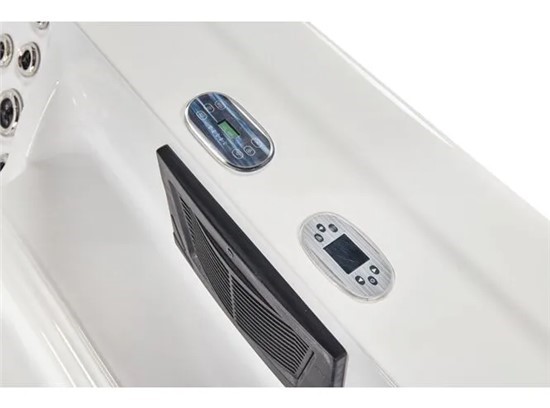

Balboa System: (BP601 3G1 + TP400)

Swimming Training System: Balboa

Filters: x2

Water Pump: x1

Filter Pump: x1

LED Lighting: x3

Jets: x28

Ozone: x1

UV Light: x1

Handle: x1

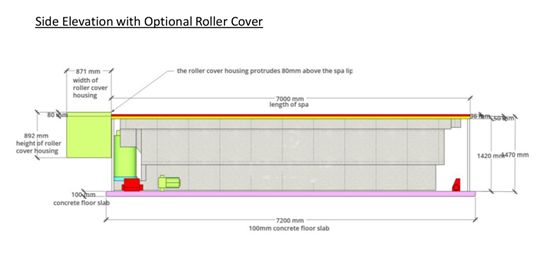

Electric Roller Shutter: (Optional)

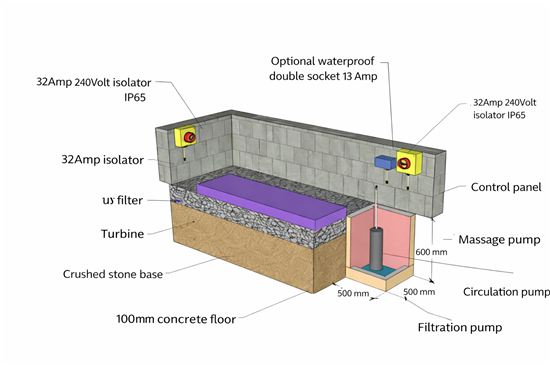

Isolation Switches: x2 32Amp

Noise Level: 30 dB

Sand Filter System: Yes

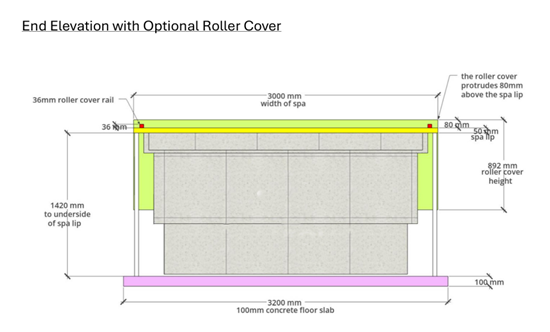

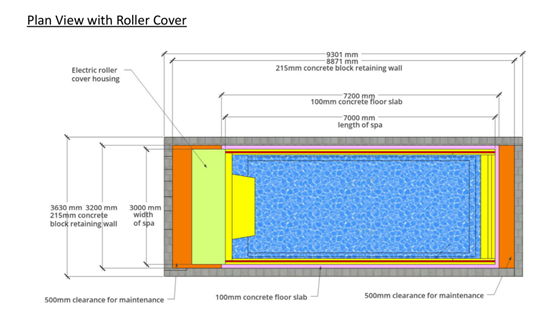

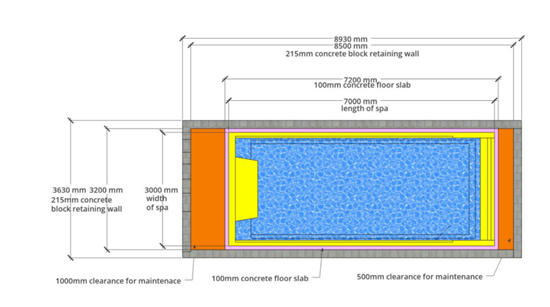

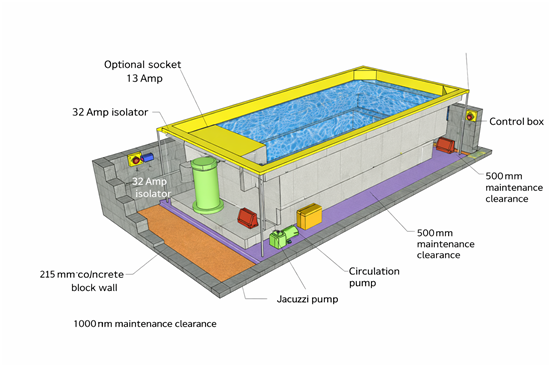

Installation Requirements

Access Required at Both Ends: Minimum 1000 mm & 500 mm for Maintenance

Concrete Floor Slab: 100 mm

Concrete retaining wall: 215 mm

Filtration Specifications

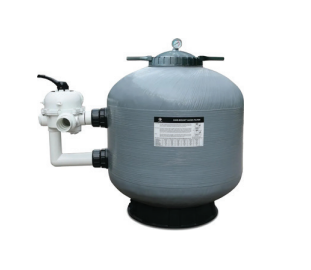

Sand Filter

Filter surface: 0.22 m²

Designed flow rate: 14 m³/hour

Material quantity: 115 kg silica sand @ 0.5–0.8 mm

Maximum temperature: 43°C

Maximum operating pressure: 2.5 Bar

Ozone

Replace unit every 36 months (based on 8 hours/day use)

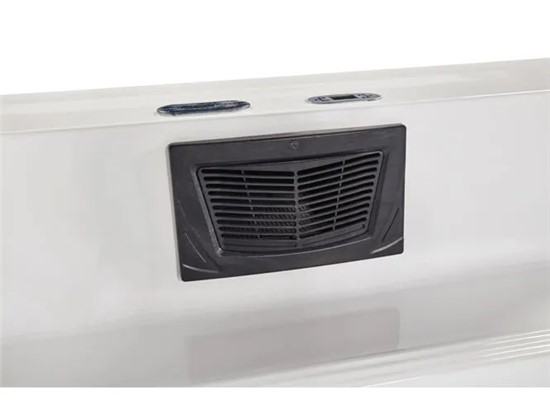

Skimmer Filters

Diameter: 20 – 200 mm

Length: 100 – 500 mm

Ultraviolet (UV) Filter

Voltage: 12 Volt DC

Power: 16 Watt

Maintenance Schedule

Filter Sand: Backwash monthly, degrease every 6 months

Skimmer filters: Clean monthly, replace every 12 months

UV lamps: Replace every 36–60 months
