Dimensions: 788 x 300 x 150 cm
Number of people: 2
Number of jets: 28

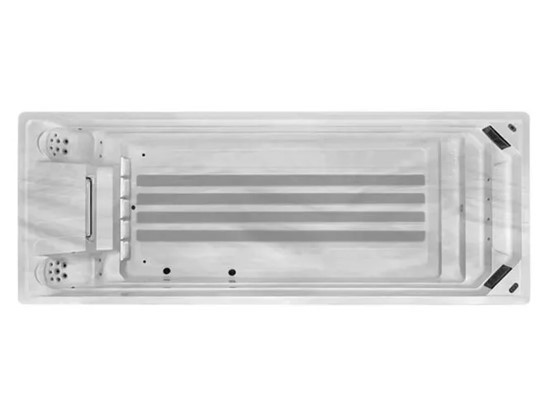

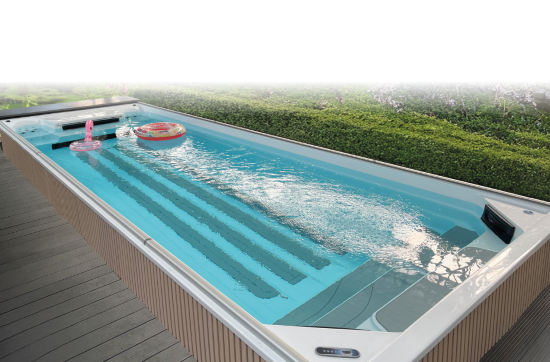

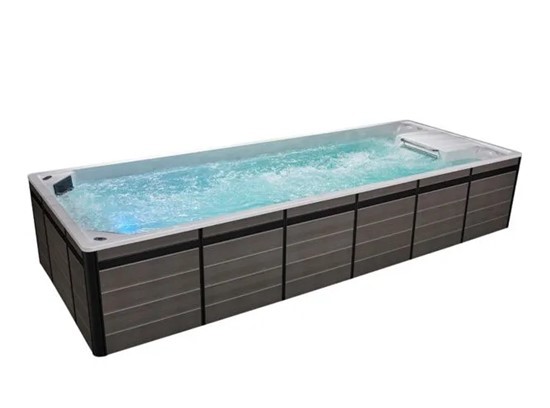

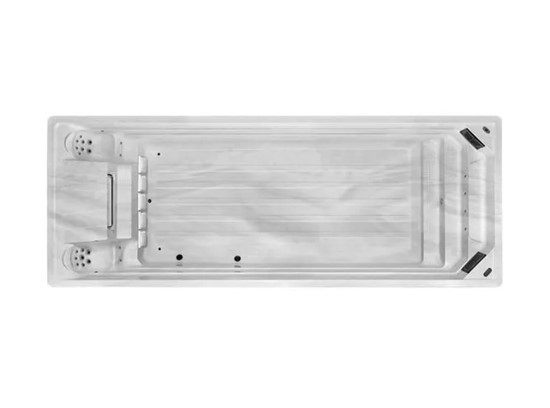

Storm Spas | Swimspa Turbine 8 Grand – Maximum performance for swimming and relaxation

The Swimspa Turbine 8 Grand from Storm Spas offers a unique swimming experience thanks to its innovative counter-flow turbine technology. Compared to conventional jet-based swim spas, the turbine produces a smooth, natural water flow that is ideal for both recreational and competitive swimmers. Equipped with a powerful Balboa control system (BP6013G1+TP400), a dual filtration system (2.8 kW) and a 1.5 kW pump, this swim spa ensures crystal clear water and optimal water circulation. The combination of 28 hydrotherapy massage jets and a counter-flow swimming system offers both athletic challenges and ultimate relaxation.

Key features of the Turbine 8 Grand Swimspa

Dimensions: Ideal for gardens and terraces (length approx. 8 meters).

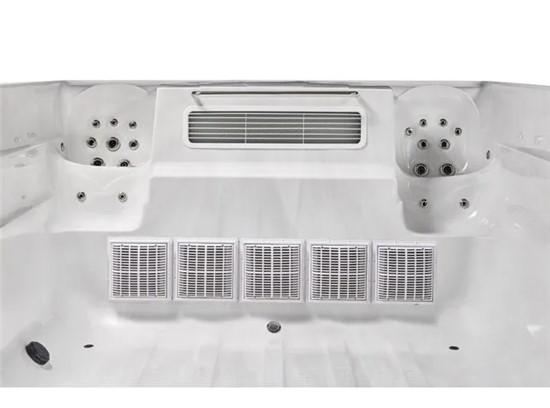

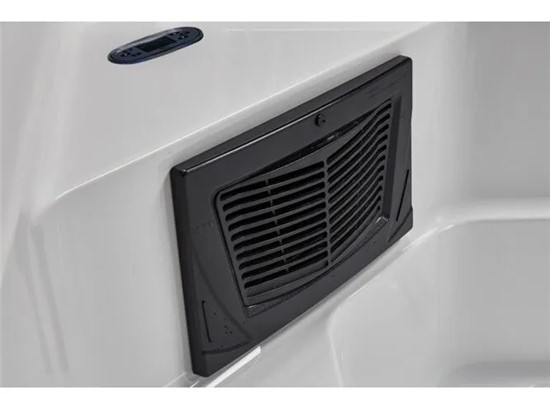

Counter-flow system: High-performance turbine for a constant water flow.

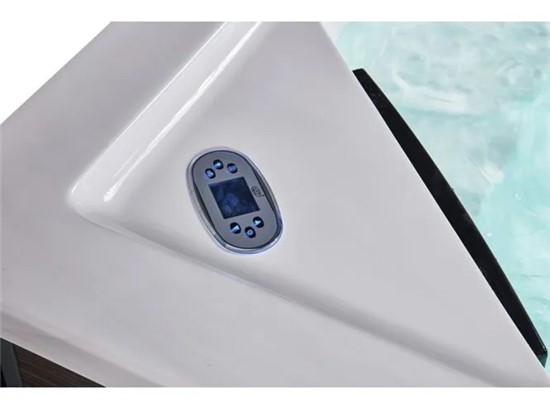

Control: Balboa BP6013G1 + TP400 – reliable and intuitive operation.

Filter and hygiene: Ozone and UV disinfection for clean water.

Massage jets: 28 jets for targeted hydrotherapy and relaxation.

Lighting: Three LED lights for an atmospheric atmosphere.

Energy efficiency: Hybrid heating system for low energy consumption.

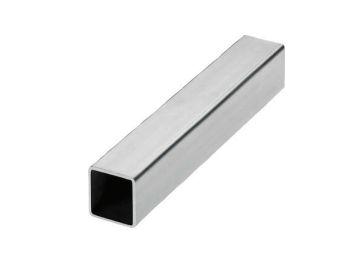

Safety and comfort: Non-slip surface and durable stainless steel railings.

Automatic cover: Optional for protection and heat retention.

Power supply: Operates on two 32 amp electrical outlets.

Why choose the Turbine 8 Grand Swimspa?

The Turbine 8 Grand Swimspa is the ideal choice for demanding swimmers and wellness enthusiasts. Thanks to its advanced technology, sustainable materials and powerful features, it transforms any garden into a luxurious spa and fitness oasis.

Technical Specifications

Dimensions: 7880 x 3000 x 1500 mm

Handle: x1

Balboa System: (BP601 3G1 + TP400)

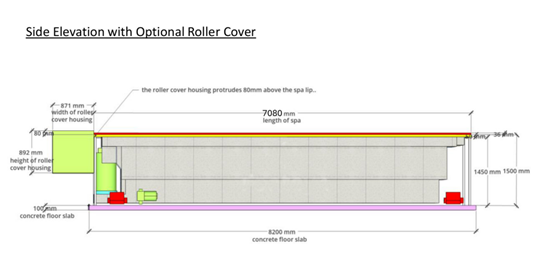

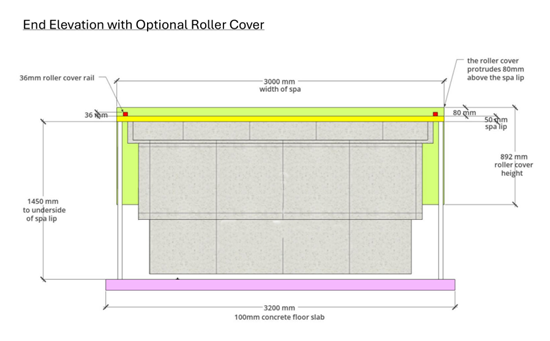

Electric Roller Cover: (Optional)

Isolation Switches: x2 32Amp

Swimming Training System: Balboa

Double Socket 13Amp: (Optional)

Filters: x2

Sand Filter System: Yes

Water Pump: x1 (1.5kw)

Filter Pump: x1 (0.75kw)

LED Lighting: x3

Jets: x28

Ozone: x1

UV Light: x1

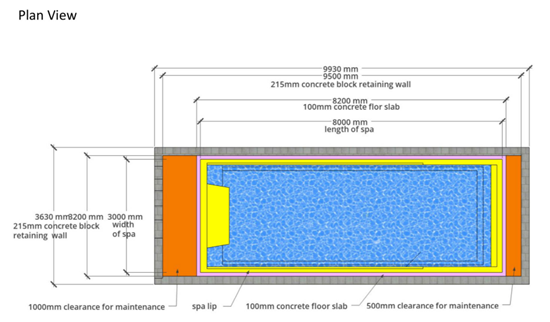

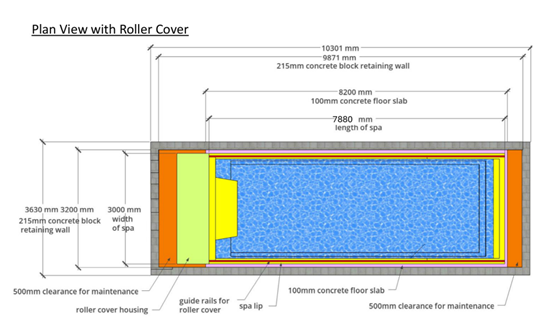

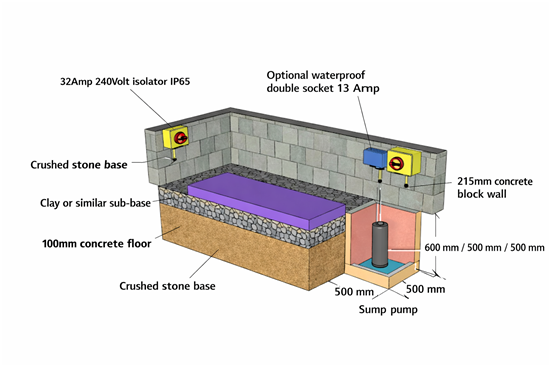

Installation Requirements

Access required at both ends: minimum 1000 mm & 500 mm for maintenance

Concrete floor slab: 100 mm

Concrete block retaining wall: 215 mm

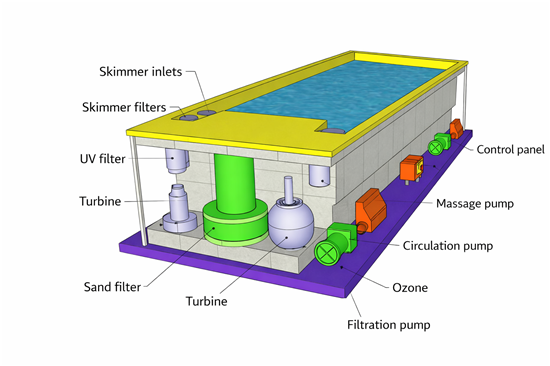

Filtration Specifications

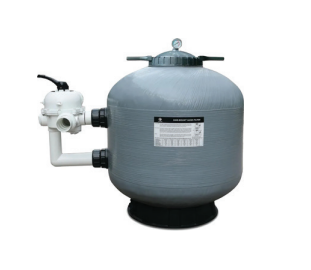

Sand Filter

Filter surface: 0.22 m²

Designed flow rate: 14 m³/hour

Material quantity: 115 kg silica sand @ 0.5–0.8 mm

Maximum temperature: 43°C (based on 8 hours/day use)

Maximum operating pressure: 2.5 Bar

Ozone

Replace unit every 36 months

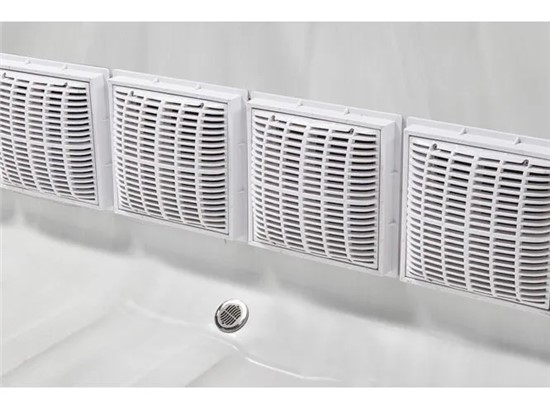

Skimmer Filters

Diameter: 20–200 mm

Length: 100–500 mm

Ultraviolet (UV) Filter

Voltage: 12 Volt DC

Power: 16 Watt

Maintenance Schedule

Sand Filter: Backwash monthly, degrease every 6 months

Skimmer Filters: Clean monthly, replace every 12 months

UV Lamps: Replace every 36–60 months
