Dimensions: 1183 x 300 x 145 cm
Number of people: 2
Number of jets: 20

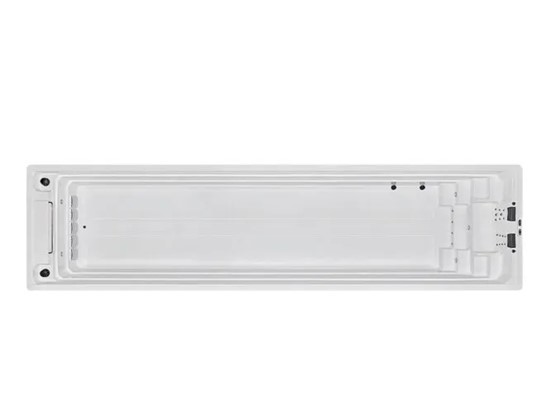

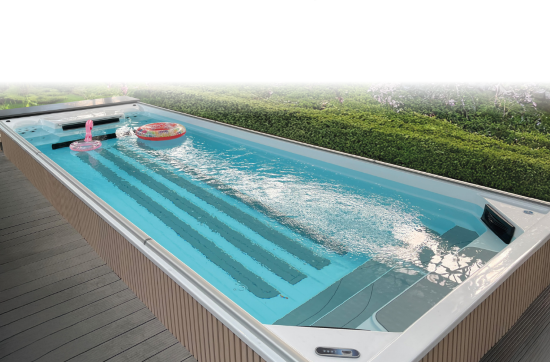

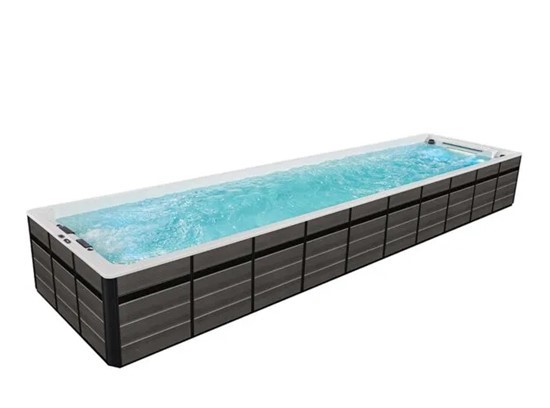

Unique 12-meter swim spa – a combination of luxury and fitness

Experience the perfect combination of relaxation and fitness with the spacious 12-meter swim spa. Equipped with the advanced Balboa system, this high-quality swim spa offers a powerful 2.8 kW swim training system, allowing for optimal workouts. The water quality remains crystal clear thanks to a 1.5 kW water pump and a 0.75 kW filter pump, supported by two high-performance filters. The 12-meter swim spa can be operated with two 32 amp electrical connections.

Maximum relaxation with 20 massage jets and innovative water treatment

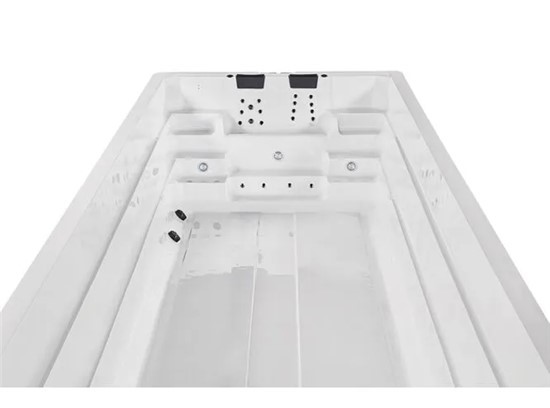

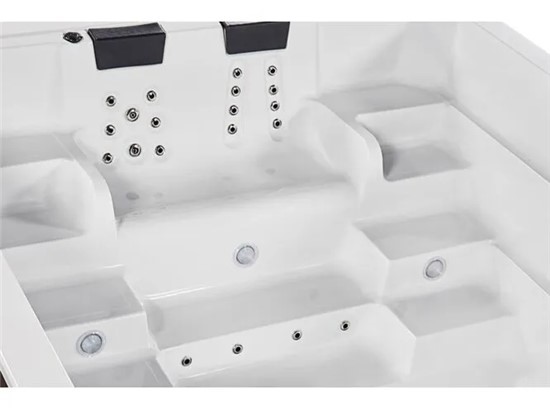

20 strategically placed whirlpools for a relaxing massage

Ozone generator and UV disinfection for maximum water hygiene

5 energy-efficient LED lights for a relaxing atmosphere

2 comfortable neck pillows for maximum comfort
Automatic cover (optional) for safety and easy maintenance
Total power: 10.85 kW for ultimate comfort
Immerse yourself in ultimate relaxation and well-being with the 12-meter swim spa. The perfect solution for fitness and luxury in your home!

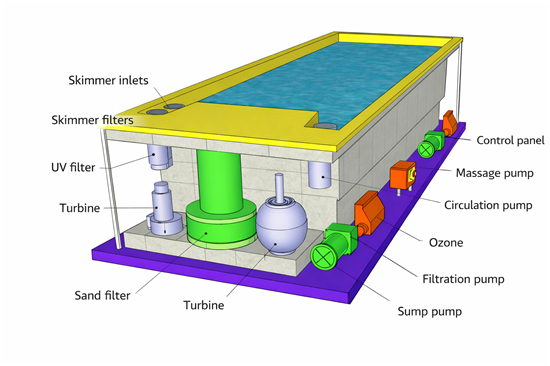

Technical Specifications

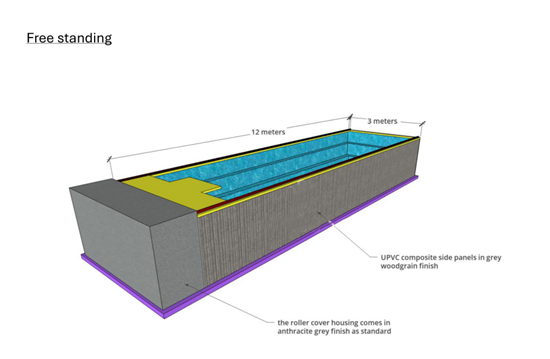

Dimensions: 11830 x 3000 x 1450 mm

Handle: x1

Balboa System: (BP6013G1 + TP400)

Electric Roller Cover: (Optional)

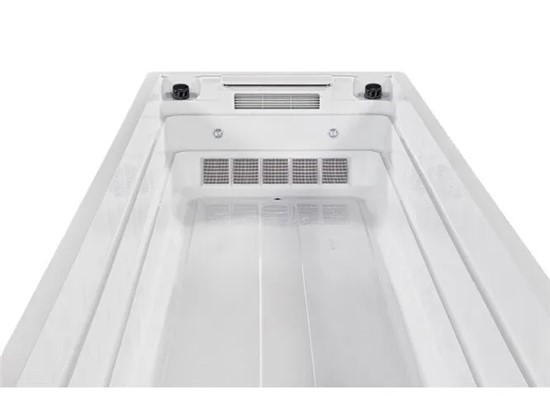

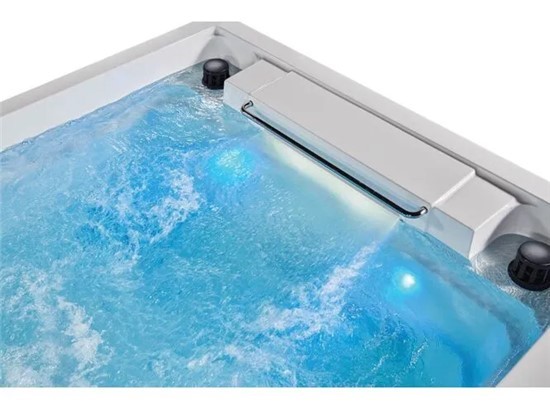

Swimming Training System: Balboa

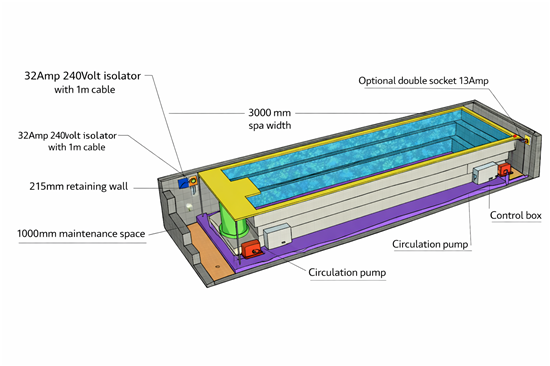

Isolation Switches: x2 32Amp

Filters: x2

Double Socket 13Amp: (Optional)

Water Pump: LP200 (1.5 Kw)

Sand Filter System: Yes

Filter Pump: JA100 (0.75 Kw)

LED Lighting: x5

Jets: x20

Ozone: x1

UV Light: x1

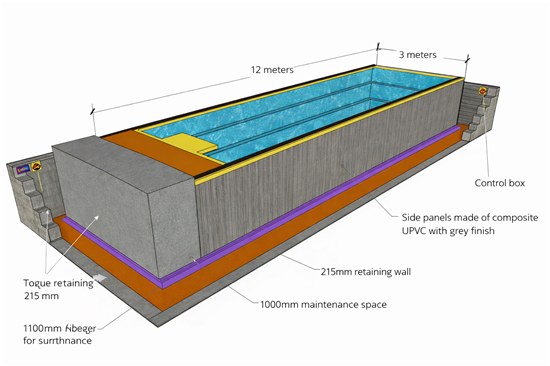

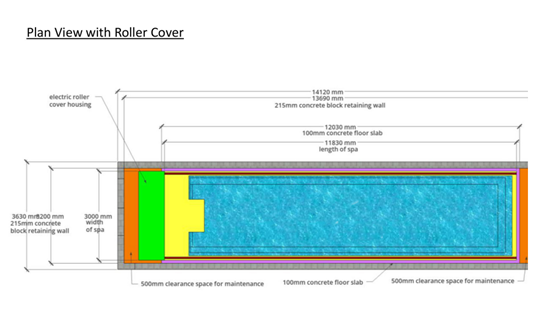

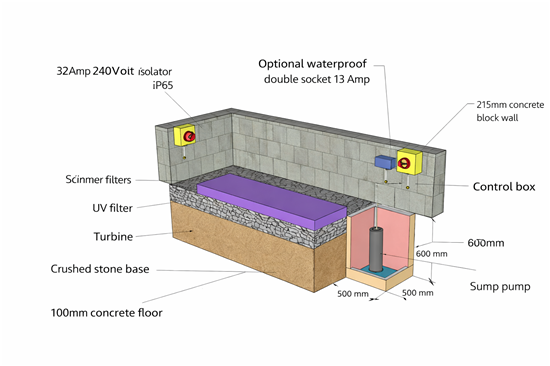

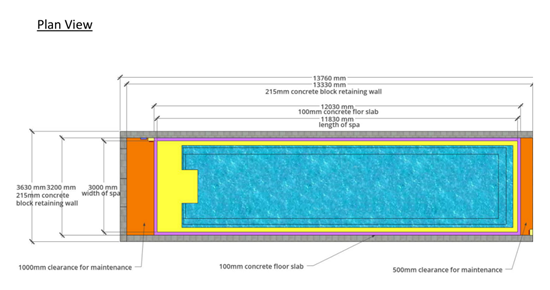

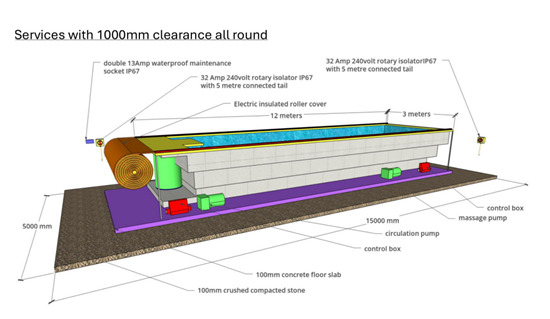

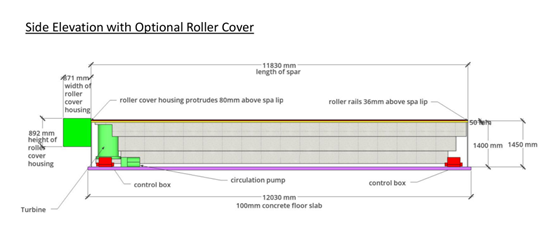

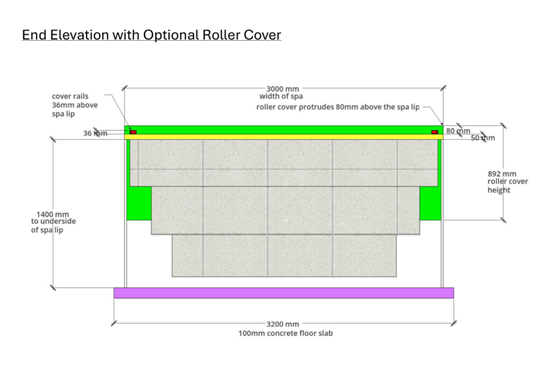

Installation Requirements

Access required at both ends: minimum 1000 mm & 500 mm for maintenance

Concrete floor slab: 100 mm

Concrete block retaining wall: 215 mm

Filtration specifications

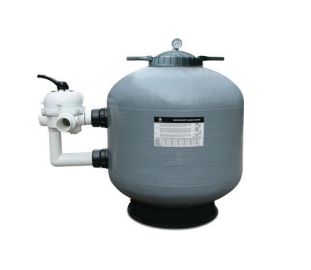

Sand filter

Filter surface: 0.22 m²

Designed flow rate: 14 m³/hour

Material quantity: 115 kg silica sand @ 0.5–0.8 mm

Maximum temperature: 43°C

Maximum operating pressure: 2.5 Bar

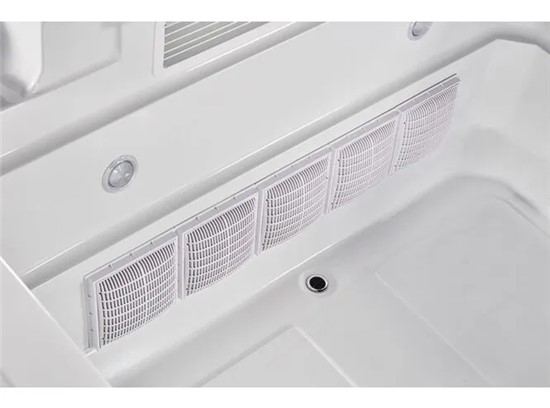

Skimmer filters

Diameter: 20–200 mm

Length: 100–500 mm

Ultraviolet (UV) filter

Voltage: 12 Volt DC

Power: 16 Watt

Ozone

Replace unit every 36 months (prices are based on 8 hours/day)

Maintenance Schedule

Sand Filter: Backwash monthly, degrease every 6 months

Skimmer Filters: Clean monthly, replace every 12 months

UV Lamps: Replace every 36–60 months
