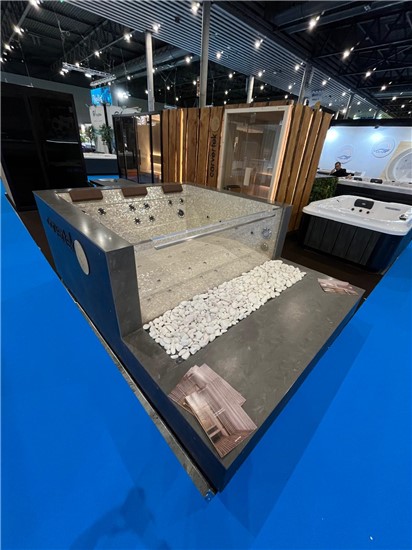

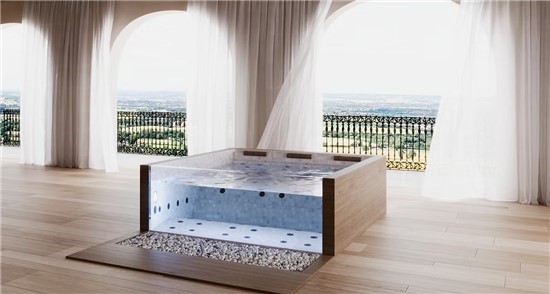

The Carvertek Infinity Spa is a luxurious choice for relaxation and well-being. It is designed to offer high-quality hydrotherapy, with stainless steel jets that provide back and body massage.

It has an ozone disinfection system, which reduces maintenance time and improves water quality. The controller allows for easy use, while the multi-colored LED lighting creates the ideal atmosphere for any occasion.

Its robust design makes it durable, while the warm hydromassage helps reduce stress and relieve muscle pain.

TECHNICAL INFORMATION

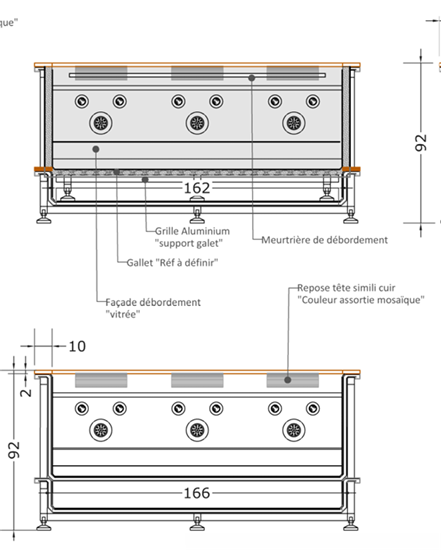

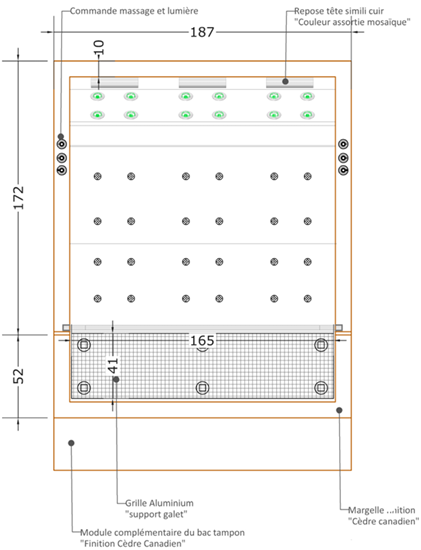

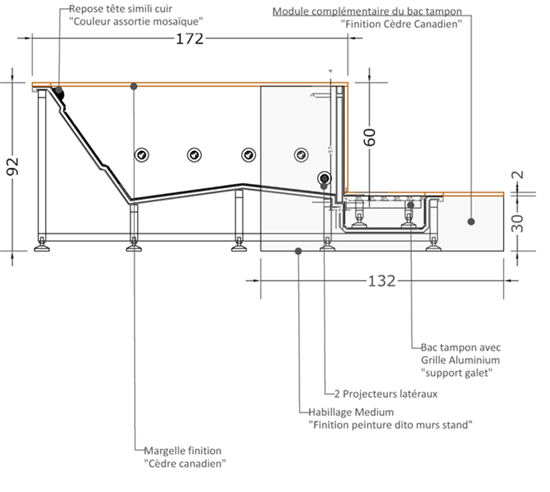

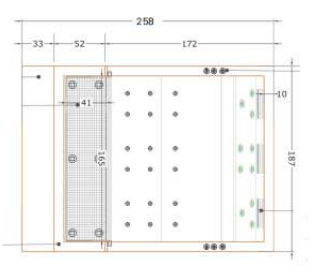

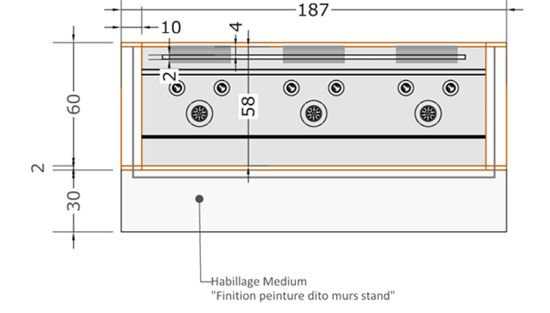

Dimensions 2.24 x 1.87 x 0.92 m
No. Jets 36

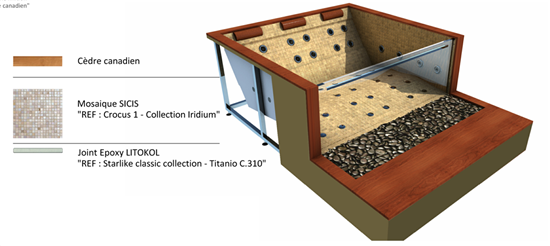

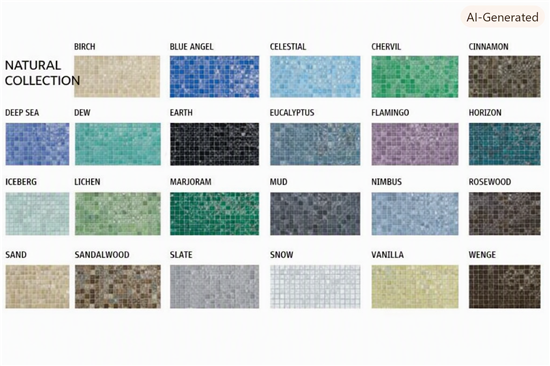

Shell Mosaic Tiles
Panels No side panels
Net weight 600 Kg
Net weight with water 2100 kg

EQUIPMENT SPECIFICATIONS

Seats 3

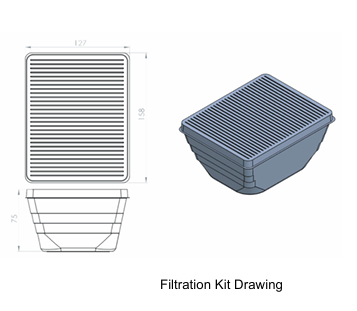

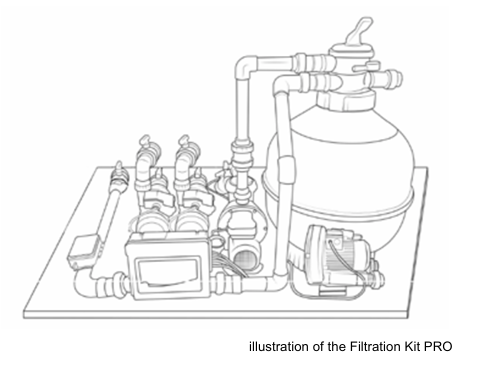

Filter 1 pressure filter
Filtration Pump 1 – 750 W
Massage Pump 1 – 1500 W
Blower 1 – 850 W
Disinfection Equipment UV
Control System w/ Heater 1 – 3000 W
Lighting  RBB Led Spots
Cover 1

SPECIFICATIONS OF WATER CIRCUIT

Water capacity 1500 l
Drain *

ELECTRICAL SPECIFICATIONS

Voltage 220-240 V ~ ou 380-415 V ~
Max Absorbed Power 3750 W
Frequency 50 Hz
Amperage 16A

Important: The equipment must be connected to an exclusive and permanent power line capable to support installed power. Lighting and electrical receptacles must be located at least 1.5 meters from the equipment. The circuit ground wire must be provided to take advantage of the designed-in safety features of the equipment. The electric installation must be in accordance with actual legislation.
